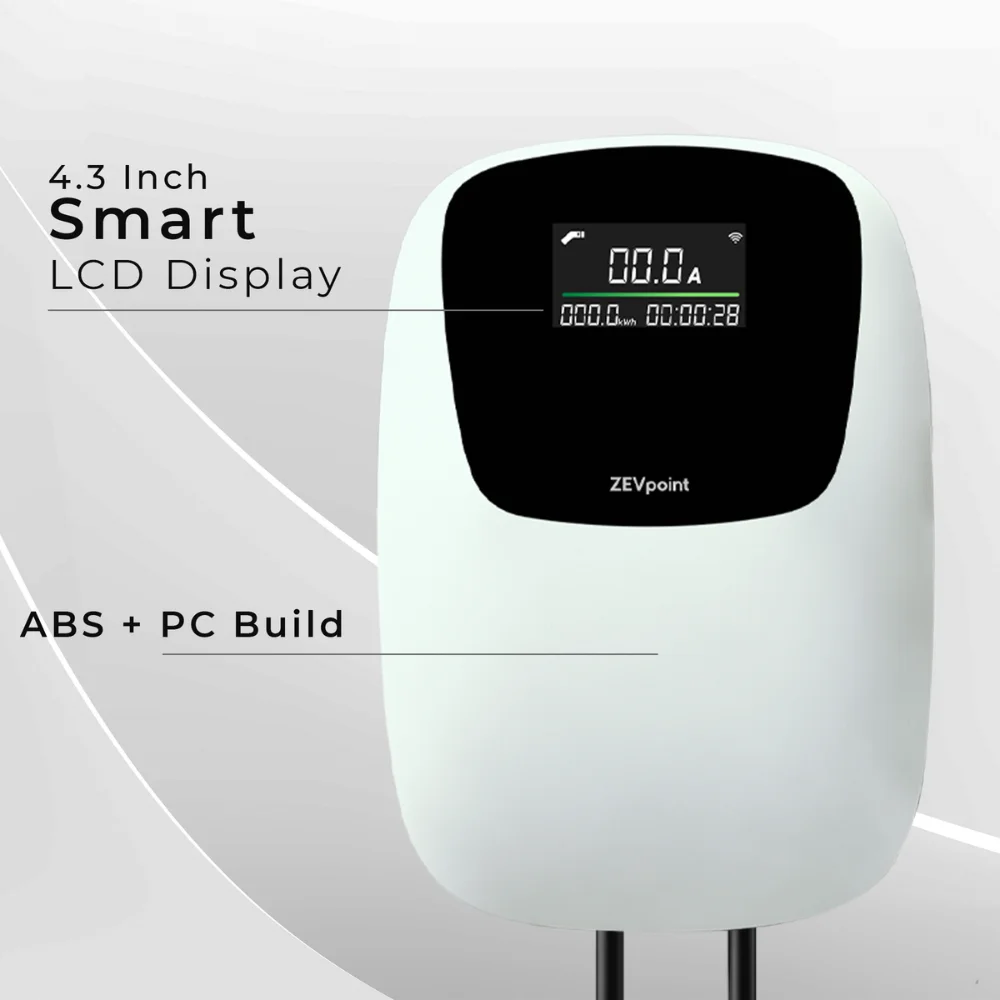

Specifications & Installation
- Output: Up to 22kW
Current Options: 6A-32A
Input Voltage: 400V
Cable Length: 20 feet
Connector Type: Type 2 (IEC 62196-2) - Dimensions: 322mm x 188mm x 119mm
- Weight: 6.5 kg
- Operating Temperature: -35°C to +60°C
- Safety Features: Overheat prevention, Short circuit protection grounding, water resistance, dust resistance, emergency stop swtich
Installation Requirements
- Power: A dedicated 3 phase power source with adequate connected load is required for optimal performance
- Wiring: Use a minimum of 6 square mm, 5-core copper cable to handle the electrical load safely. In hot environments, consider using a 10 square mm copper cable.
- Earthing: Ensure the power source is properly earthed to prevent electrical hazards.
- Circuit Breaker: Install a 40A four-pole MCB (Miniature Circuit Breaker), Surge Protection Device (SPD), and RCD (Residual Current Device) to protect against power surges and electrical faults.
- Voltage Stabilizer: If facing frequent input power fluctuations, use an appropriate voltage stabilizer
Warranty & Support
At Zevpoint, we stand behind the quality and durability of our products. Our warranty coverage includes:
Cables: Up to a 5-year warranty covering defects, but excluding physical damage to connectors.
Housing and Enclosure: 5-year warranty for structural integrity and durability.
Other Components: 2-year warranty against manufacturing defects and functional issues.
Accessories: No Warranty
Please note that the warranty does not cover damage caused by improper use, power surges, supply side electrical faults, burnouts or unauthorized modifications. For detailed warranty terms and conditions, please refer to this link.
Customer Support Email: support@zevpoint.com
Customer Support Phone: +91 9779750538
Operating Hours: Monday to Saturday, 10 AM to 6 PM (local time)
Returns
We want you to be fully satisfied with your purchase from Zevpoint. If you are not completely happy with your order, you can return it within 7 days of receipt, subject to the following conditions:
1. Eligibility for Returns:
– Items must be returned in their original condition, unused, and in the original packaging with all accessories and documentation.
– Proof of purchase is required for all returns.
2. Non-Returnable Items:
– Items purchased during sales period, Cash on Delivery (COD) or No Cost EMI offers
