Specifications & Installation
Output: Up to 7.2kW

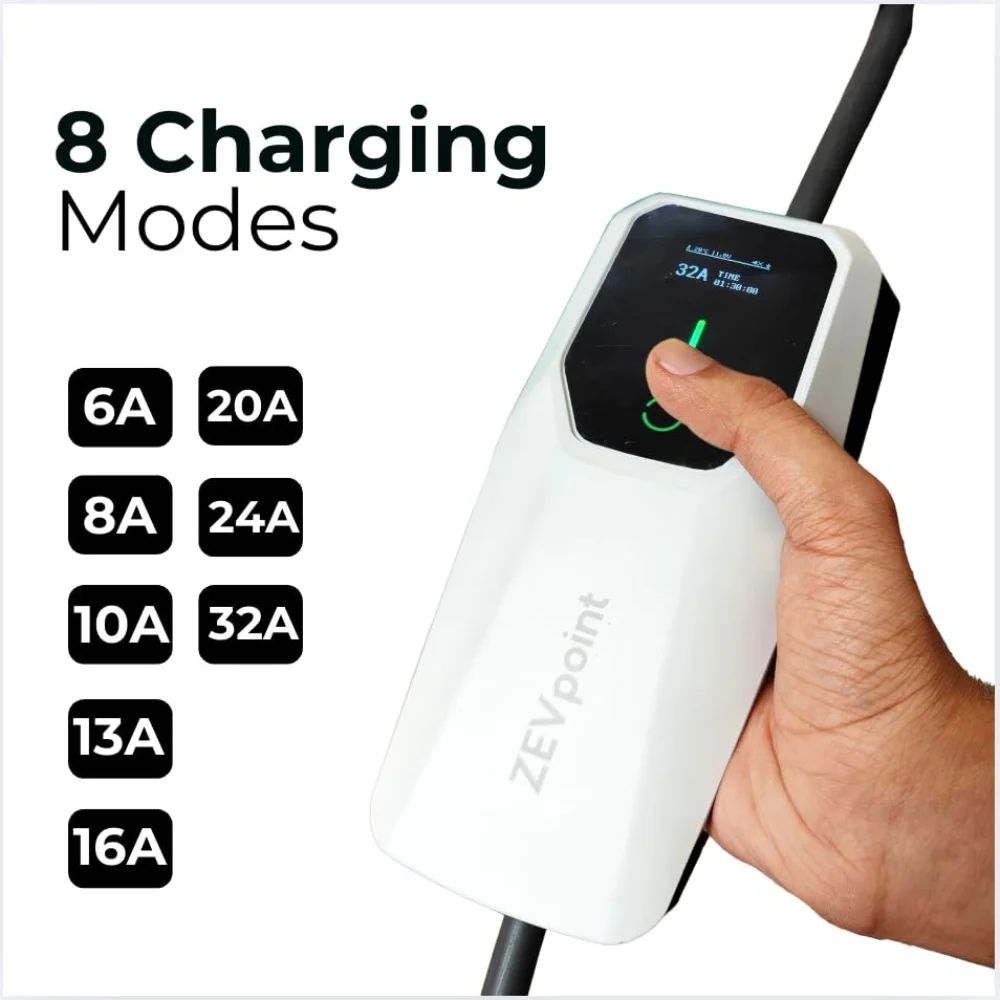

Current Options: Switchable from 8A and 32A
Input Voltage: 230V

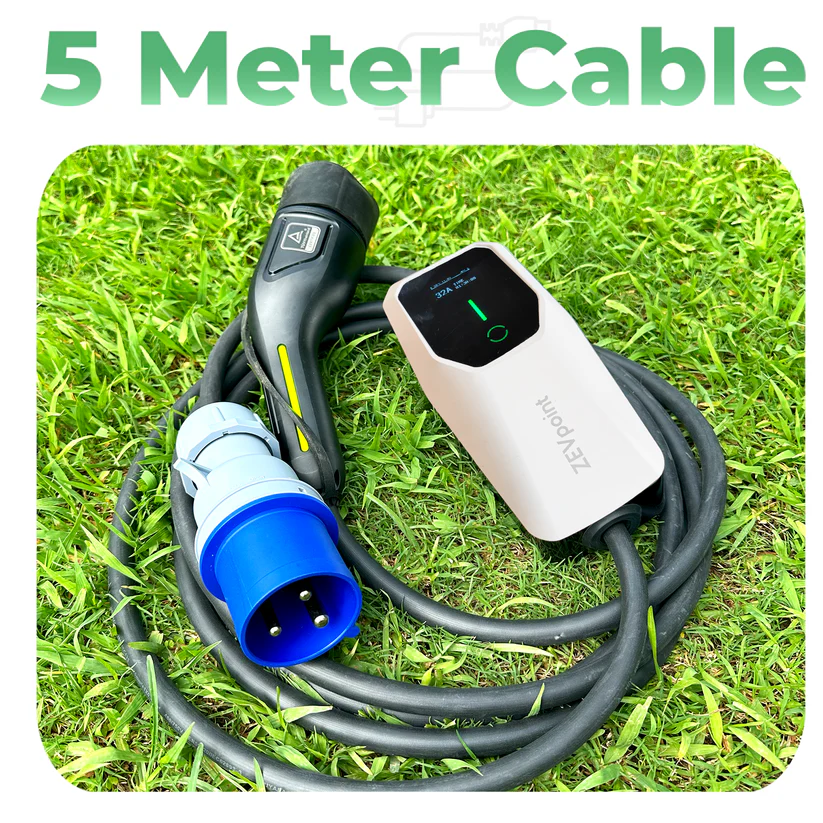

Cable Length: 5 meters
Connector Type: Type 2 (IEC 62196-2)
Dimensions: 220mm x 110mm x 50mm
Weight: 3.5 kg
Operating Temperature: -25°C to +55°C

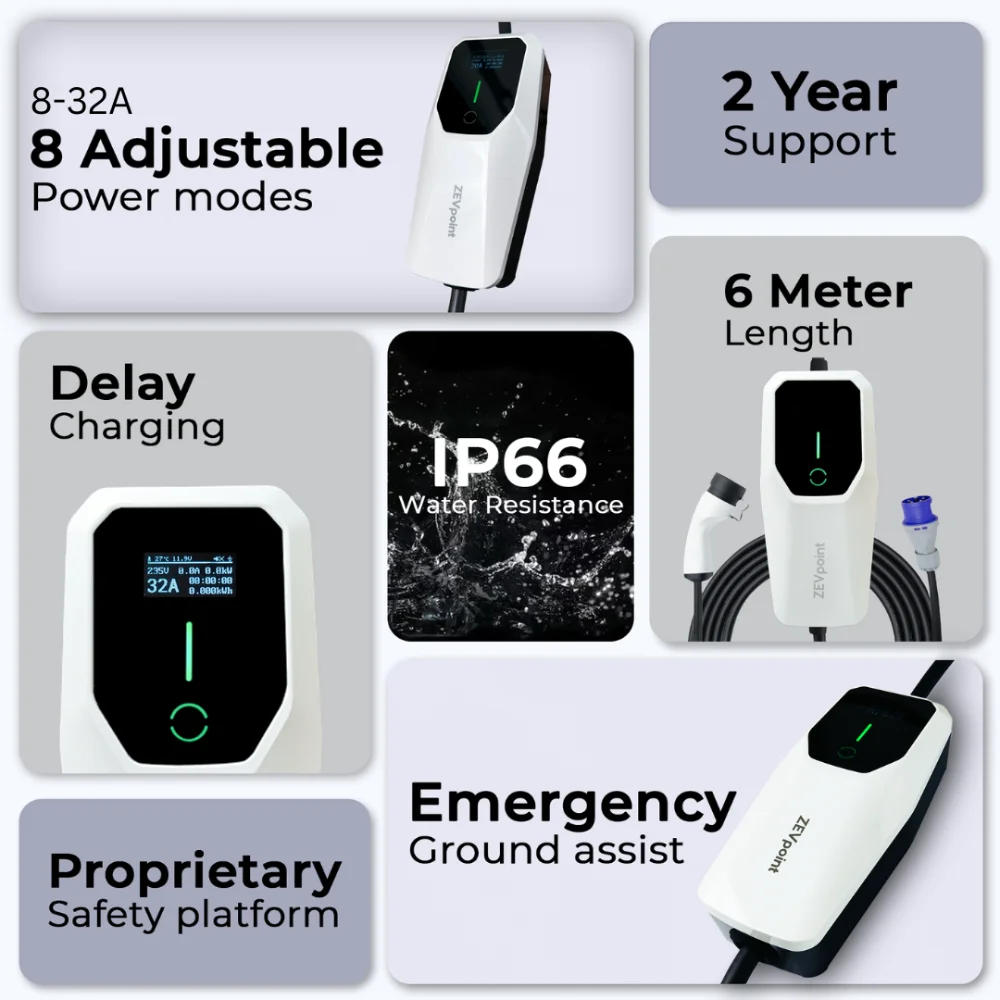

Safety Features: Overload protection, short circuit protection, leakage protection, ground protection, over-temperature protection, water resistance (IP66), dust resistance
Install Guide
- Power Socket: A dedicated 32A power socket with adequate connected load is required for optimal performance (included with the packaging)
- Wiring: Use a minimum of 6 square mm, 3-core copper cable to handle the electrical load safely. In hot environments, consider using a 10 square mm copper cable.
- Earthing: Ensure the power socket is properly earthed to prevent electrical hazards.
- Circuit Breaker: Install a 40A double/two-pole MCB (Miniature Circuit Breaker) and a Surge Protection Device (SPD) to protect against power surges and electrical faults.
- Voltage Stabilizer: If facing frequent input power fluctuations, use an appropriate voltage stabilizer.
Shipping, COD & GST Invoice
Processing Time: All orders are processed and shipped within 24 hours of receipt and tracking details are shared on your email.
Cash on Delivery (COD)
- We provide Cash on Delivery (COD) across India. Contact +91 9227002007
- For COD, we charge a small confirmation amount from the customer. The Balance amount is to be paid at the time of delivery.
GST Invoice
- If you require a GST invoice for your order, please email your request along with the necessary details to our customer support team at support@zevpoint.com
Warranty & Support
At Zevpoint, we stand behind the quality and durability of our products. Our warranty coverage includes:
Cables: Up to a 5-year warranty covering defects, but excluding physical damage to connectors.
Housing and Enclosure: 5-year warranty for structural integrity and durability.
Other Components: 2-year warranty against manufacturing defects and functional issues.
Accessories: No Warranty
Please note that the warranty does not cover damage caused by improper use, power surges, supply side electrical faults, burnouts or unauthorized modifications. For detailed warranty terms and conditions, please refer to this link.
Customer Support Email: support@zevpoint.com
Customer Support Phone: +91 9779750538
Operating Hours: Monday to Saturday, 10 AM to 6 PM (local time)
Returns
We want you to be fully satisfied with your purchase from Zevpoint. If you are not completely happy with your order, you can return it within 7 days of receipt, subject to the following conditions:
1. Eligibility for Returns:
– Items must be returned in their original condition, unused, and in the original packaging with all accessories and documentation.
– Proof of purchase is required for all returns.
2. Non-Returnable Items:
– Items purchased during sales period, Cash on Delivery (COD) or No Cost EMI offers
